"Unlocking the Power of Electrolytic Capacitors: Energy Storage for Modern Electronics"

In the intricate world of electronic circuitry, where efficiency and reliability are paramount, electrolytic capacitors stand as indispensable components, quietly storing and releasing energy to ensure the smooth operation of countless devices. From power supplies and audio amplifiers to automotive electronics and industrial machinery, these capacitors play a pivotal role in stabilizing voltage, filtering noise, and storing energy for instantaneous delivery when needed most.

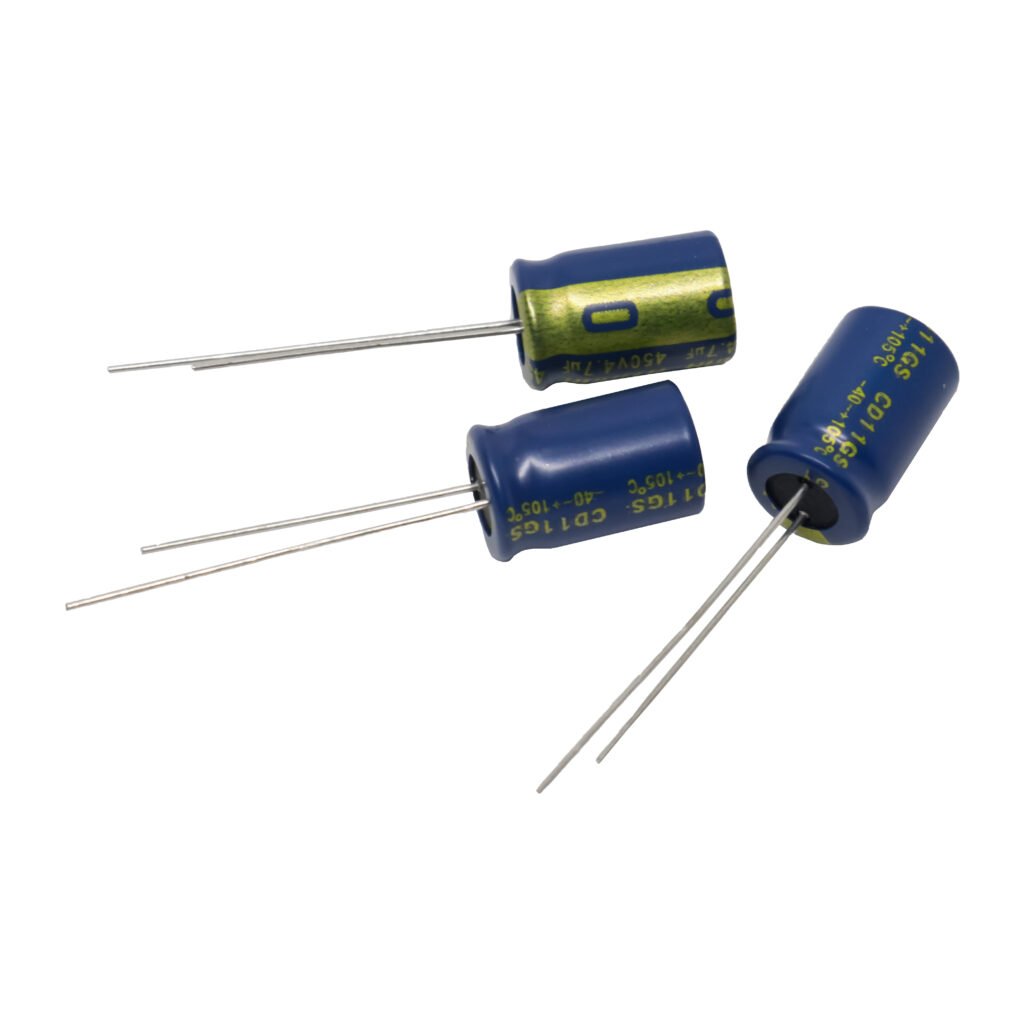

At its core, an electrolytic capacitor is a marvel of electrochemical engineering, utilizing a conductive electrolyte and a thin oxide layer to achieve high capacitance values in a compact form factor. Unlike their ceramic or film capacitor counterparts, electrolytic capacitors excel in storing large amounts of energy per unit volume, making them ideal for applications requiring high capacitance values and low cost.

One of the defining characteristics of electrolytic capacitors is their polarity, which must be observed during installation to prevent damage or failure. Due to their construction, electrolytic capacitors are polarized devices, meaning they have a positive and negative terminal. Failure to observe polarity can result in electrolyte leakage, capacitor breakdown, and potentially catastrophic failure, emphasizing the importance of proper handling and installation.

Electrolytic capacitors come in two main varieties: aluminum electrolytic capacitors and tantalum electrolytic capacitors. Aluminum electrolytic capacitors, characterized by their aluminum foil electrodes and liquid or solid electrolyte, are widely used in power supply applications, thanks to their high capacitance values and low cost. Tantalum electrolytic capacitors, on the other hand, feature tantalum metal electrodes and a tantalum oxide dielectric, offering higher volumetric efficiency and lower equivalent series resistance (ESR), making them suitable for applications requiring high reliability and performance.

Despite their numerous advantages, electrolytic capacitors are not without their limitations. They are susceptible to temperature and voltage variations, with capacitance values decreasing at higher temperatures and voltages. Additionally, they have a finite lifespan and are prone to degradation over time, especially when subjected to elevated temperatures or high ripple currents. As such, proper derating and temperature management are essential to ensure the longevity and reliability of electrolytic capacitors in demanding applications.

In conclusion, electrolytic capacitors serve as essential energy storage devices in modern electronics, providing the necessary capacitance and energy density to meet the demands of today’s increasingly complex electronic systems. Whether it’s in power supplies, audio equipment, or automotive electronics, these capacitors play a crucial role in ensuring the stability, efficiency, and reliability of electronic circuits, underscoring their significance in the ever-evolving landscape of electrical engineering.
